Gravity Separator (Heavy)

Gravity Separator (Heavy)

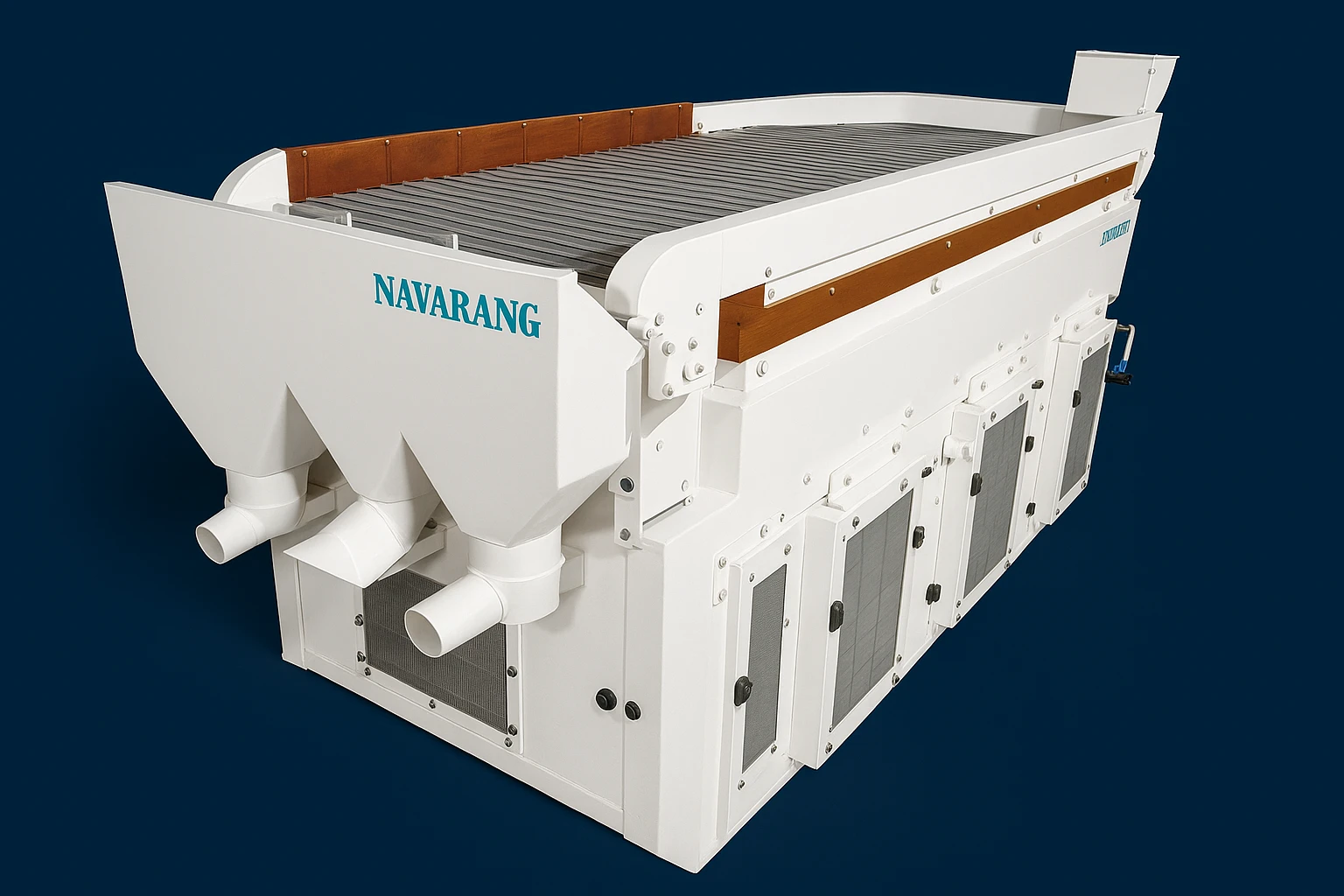

The Navarang Gravity Separator can be used to separate any type of dry bulk particles that are similar in size and shape but differ in weight. These Gravity Separators offer many advantages over competing products-a rectangular deck for greater separation efficiency and accuracy. The lighter particles move the entire length of the deck, producing the cleanest light and heavy product fractions available. The patented multiple fan system is individually adjustable, giving the necessary control through different air settings to accomplish the accurate weighting. The size of the kernels is normally between 0.5 mm (fine seeds) and 20 mm (e.g. beans)

This unique and proven multiple fan system is only available on Navarang Machines. The Navarang Gravity Separator is the most flexible, reliable and versatile machine on the world market, and is designed for wheat,seeds,spices,sesame,groundnut and other products.


  • Rectangular deck for greater capacity and accuracy
  • Deck is quick and easy interchangeable type
  • Fans are dynamically balanced with individually adjustable air control for each fan for precise control air flow.
  • All the fans are mounted on one common shaft
  • Variable oscillation speed of deck
  • Variable inclination of deck sidewise and lengthwise in wide range
  • Heavy duty and robust structural frame to absorb the vibrations
  • Seed collecting spouts are fitted with the bag holding clamps
  • Eccentrics are counter balanced giving smooth oscillating action to the deck
  • Screw type arrangement for each fan for controlling the quantity of air
  • Easy to operate
  • Lightweight wooden deck
  • Rectangle deck with maximiser
  • Segmented discharge deck
  • Separation of heavy and light product
  • Stone trap
  • Stratification Pins
  • Deck Cover


  • Due to heavy duty and rebust structural frame , Navarang Gravity Separator absorbs the vibrations.
  • Individual oblique independent motors for better control, stability and improved performance.


  • The Navarang Gravity Separator comes with a 12 months manufacturer's warranty to give you complete peace of mind.
  • Spare parts
  • Retrofit & Reconditioning
  • Maintenance
  • Repairs

Technical Specifications

Model Capacity Product Dimension Machine Power
NM-04 2.0 to 4.0 TPH 3000 * 1800 * 1500 1 + 5.0 HP
NM-98 3.0 to 5.0 TPH 4000 * 1800 * 1500 2 + 12.5 HP
