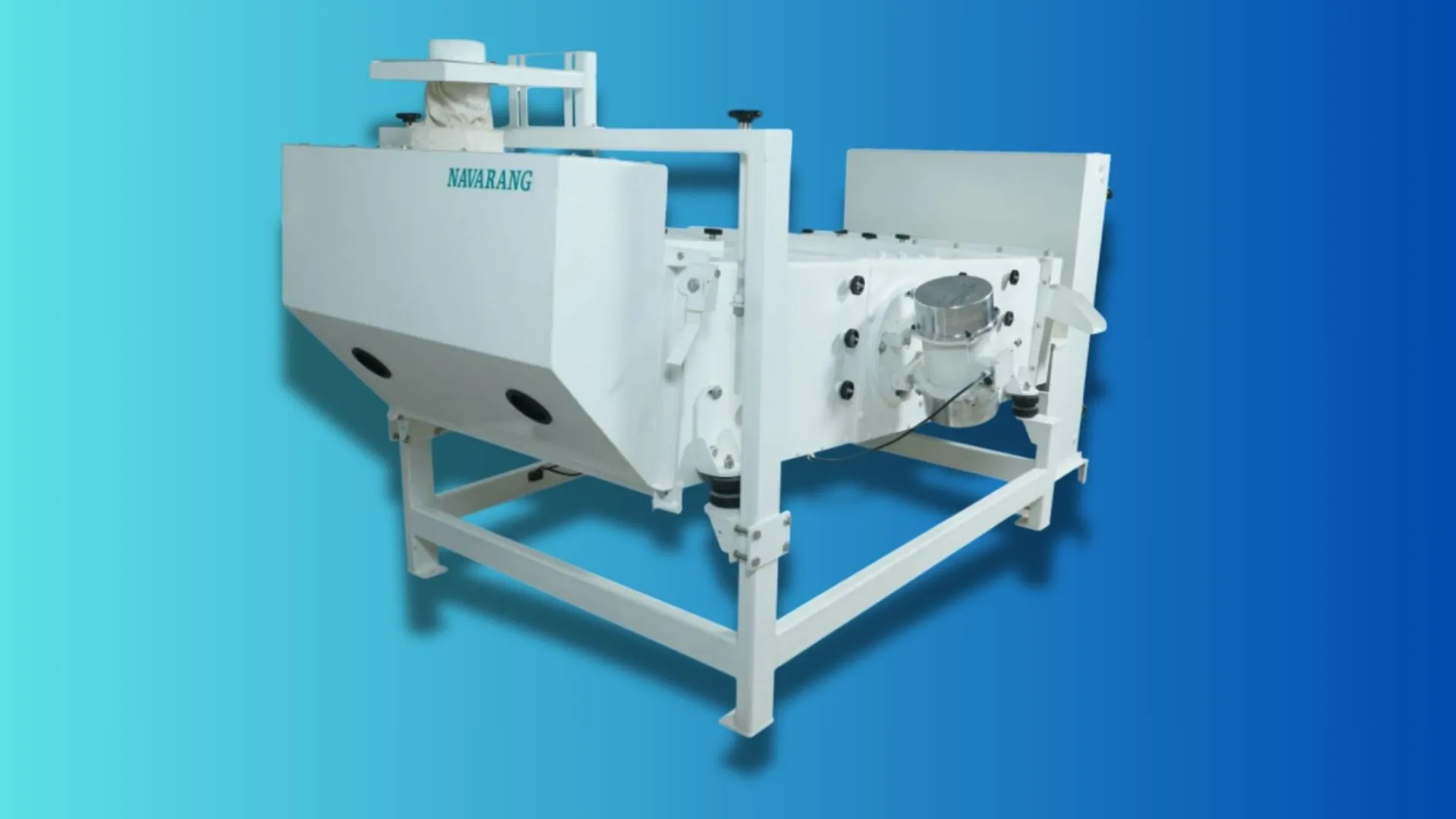

Vibro Seprator

The Navarang Vibro Separator is especially applied in wheat, durum, corn/maize, rye, soyabean, oat, buckwheat, spelt, millet, and rice mills for cleaning, or in bulk storage systems for precleaning.

Vibro Seprator

In addition, the machine is also successfully used in animal feed production plants, seed treatment systems, oilseed cleaning installations, and cocoa bean grading systems. The Vibro Separator separates the grain from coarse and fine impurities by screening. In addition, it grades a wide variety of products by size.

This Vibro Separator Consists of three sieve desks, thus it removes coarse impurities like large kernels, string, straw, wood, stones or clumps of soil, as well as fine impurities such as sand and breakage from the grain

FEATURES

Easily accessible screens for cleaning and changing easily adjustable deck inclination
Stroke and angle of throw smooth performance because of vibratory motors
Hollow rubber springs for minimum main frame vibration
Easy-to-exchange wear parts
Independent aspiration system
Rugged design
Easy operation

TECHNICAL SPECIFICATIONS


MODEL : NM-01

Capacity : 1.5 To 3.0 TPH
Product Dimension : 2800* 1900* 1500
Machine Power : 1 HP

MODEL : NM-59

Capacity : 2.0 To 4.0 TPH
Product Dimension : 2800* 2000* 1500
Machine Power : 1 HP

MODEL : NM-61

Capacity : 3.0 To 5.0 TPH
Product Dimension : 2800* 2200* 1500
Machine Power : 1 HP
